SPECIFICATIONS
|
TYPE |
Fan Support |
|
RANGE |
16” to 24” |
|
1/2” KNOCKOUTS |
2 |
|
LOOM KNOCKOUTS |
2 |
|
CLAMP TYPE |
BX/MC, NM |
|
FINISH |
Zinc Plated |
|
MATERIAL |
Steel |
|
BOX LENGHT (IN) |
4 |
|
BOX WIDTH (IN) |
4 |
|
CAPACITY |
15.5 cu in |
|
PRODUCT LENGTH (IN) |
14.96 |
|
PRODUCT WIDTH (IN) |
9.90 |
|
PRODUCT HEIGHT (IN) |
2.55 |
|
PRODUCT WEIGHT (LBS) |
1.68 |
|
MATERIAL THICKNESS (MM) |
1.591 |
|
PACKAGE QTY. |
25 |
DESCRIPTION:

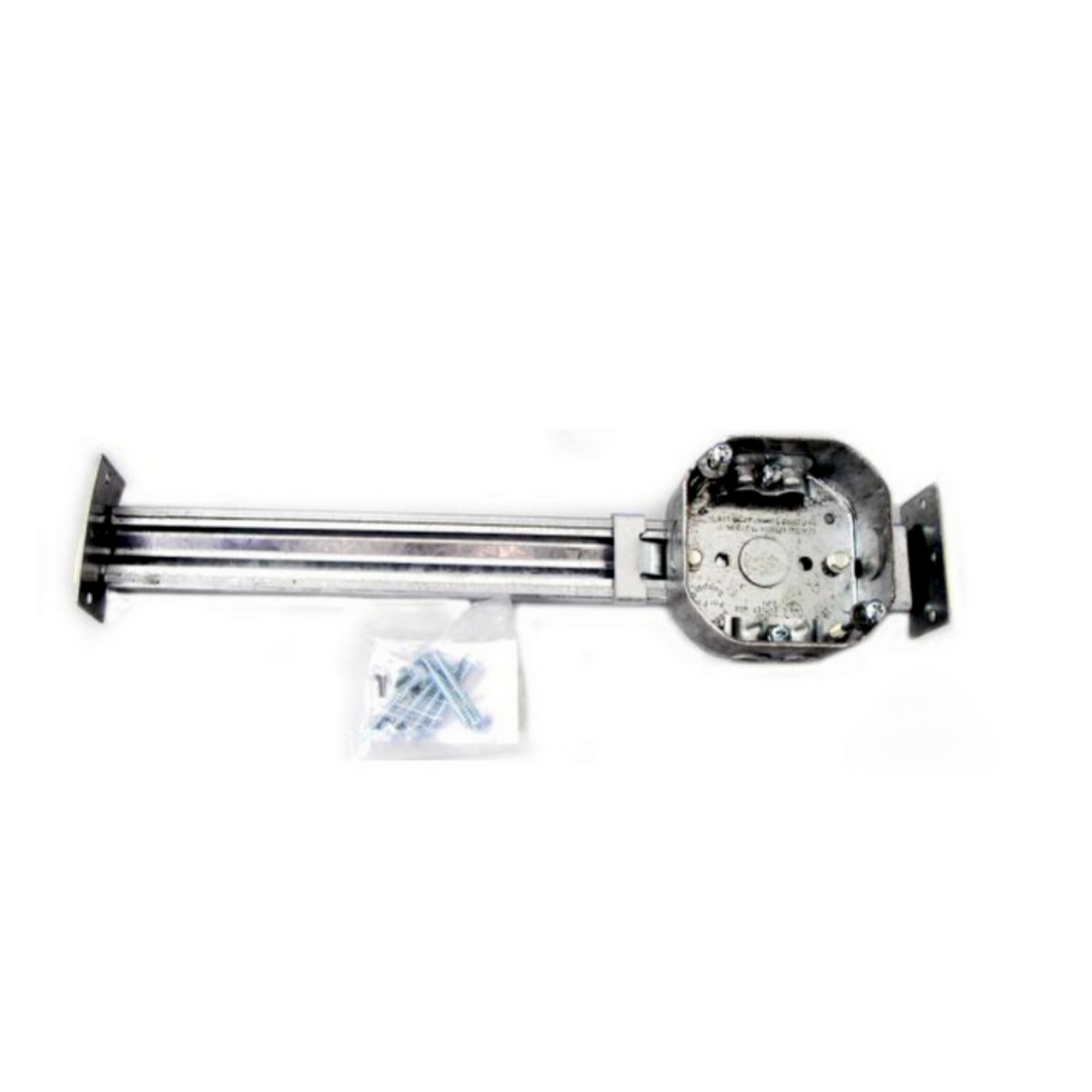

- Adjustable bar hanger for light fixture and fan support. The bar hanger has pre-installed adhesive tape on each end for easy installation to ceiling joists.
APPLICATION:
- Hanger bars are used to install electrical boxes that offset from stud walls.
