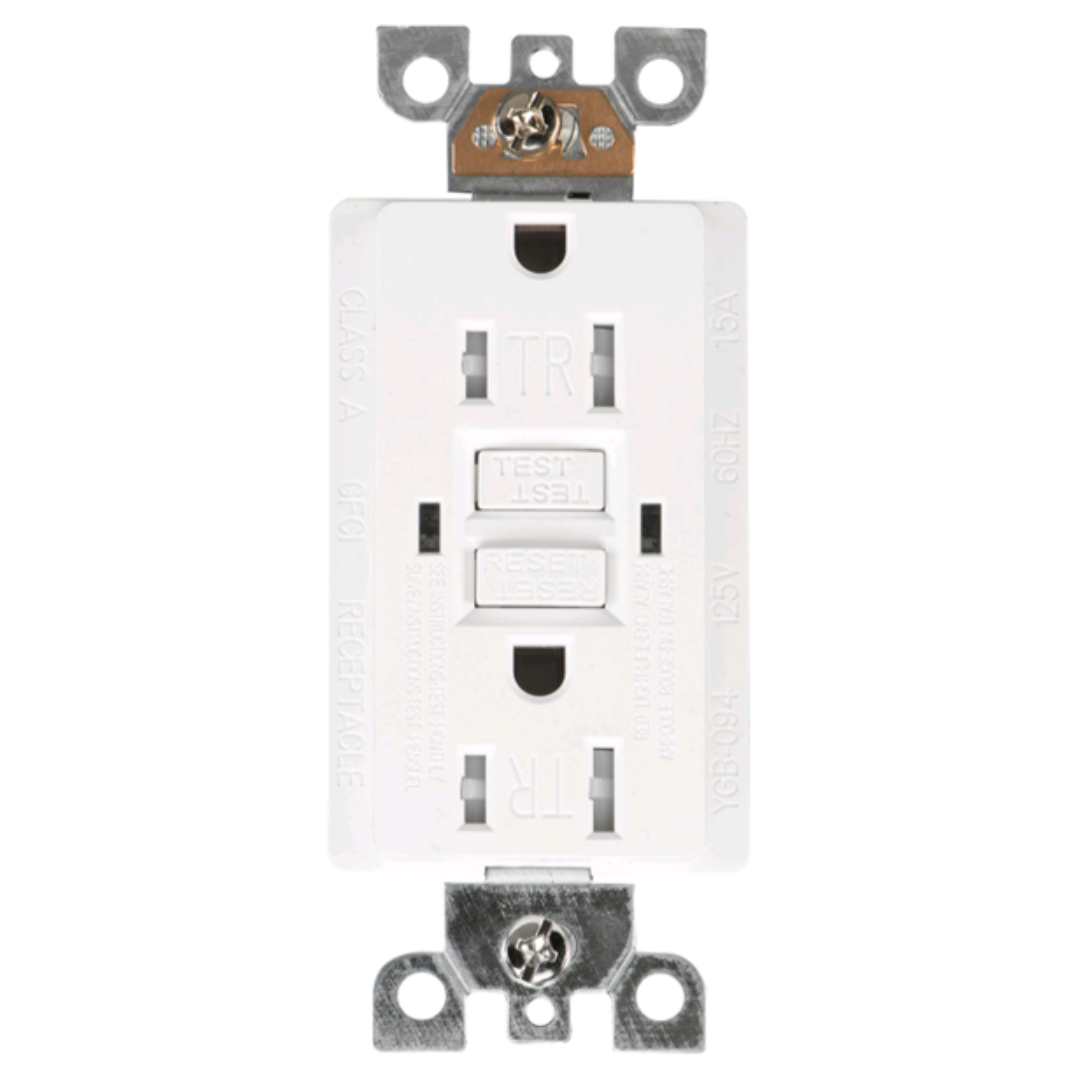

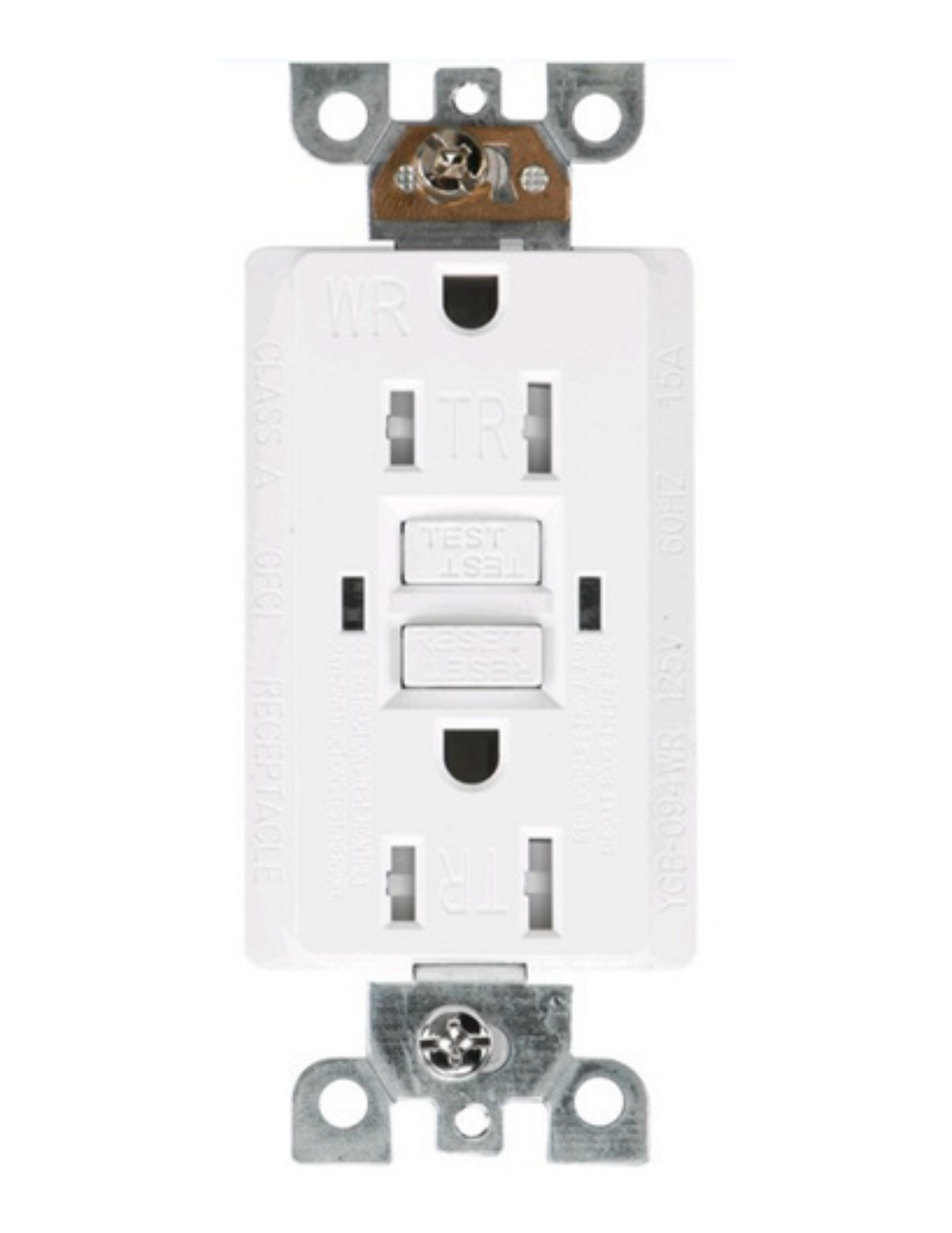

GFCI RECEPTACLE 15A TAMPER/WEATHER RESISTANT

GFCI RECEPTACLE 15A TAMPER/WEATHER RESISTANT

YGB-094WR

DOWNLOAD FILES

SPEC

View full details
Product Information
Overview

Constructed with premium high-impact resistant thermoplastic materials and rational structure design, ensures superior strength and durability. Two Indicator Light provides simple, intuitive feedback on power and protection status. If the indicator (LED) glows green, you have installed the GFCI receptacle correctly and it is working properly. The GFCI outlet automatically conducts a Self-Test(the red light will blink once) every 40 seconds to ensure the GFCI is continually working. When the GFCI receptacle reaches the end of its' life the red indicator will turn on, it reminds you to replace the outlet in time. Weather Resistant - enhanced corrosion resistant components to withstand more moist or humid location. Tamper resistant(TR) -- TR design increases the electrical safety level by preventing the attempting to insert objects in to the outlet or open the plate. Provides continuous ground fault protection -- detects and trips on actual ground fault even when self-test is being conducted./p>

Specifications
Size

105*42.8*40.7mm

Color

Cover: White (Customizable)

Base: Black (Customizable)

Enclosure

PC

Terminal

Copper Alloy | Acid Pickling



Mounting Yoke

Zinc Plated Steel

Weight

123g

Certification

culus

Standards

UL498/UL943/CSA C22.2 No.144.1

Receptacle Rating

20A/125Vac

Dielectric Voltage Withstand

1500V (AC)

Mechanical Life

6000 times

Trip Threshold

5mA

Flame Class

12-14 AWG

Trip Time

<25mS

Insertion Force

<178N

Release Force

<67N

Retention Force

>13N

Wires

12-14AWG
