Solar Station - 240W Solar Panel, 18W system load
Solar Station - 240W Solar Panel, 18W system load
DOWNLOAD FILES
SPEC
SPECIFICATIONS
|
Mono-crystalline Solar Panel & Weight |
(2)120W/36V/29 lbs |
|
Batteries & Weight |
LiFePO₄ Batteries 25.6V/36AH/18 lbs |
|
POE Switch |
3 Ports IEEE802.3af/at @PoE+ , |
|
Housing Materials |
Powder Coated Die-cast Aluminum Housing and Extruded Aluminum Frame |
|
Warranty |
2 year |
|
Finishing |
Dark Grey Pantone 8403C |
|
IP/IK |
IP 66/IK 08 (Except Solar Panel IK07 |
|
Spigot Diameter (in.) |
2 3/8 in Pole-top Tennon |
|
System Voltage |
24V |
|
System Power Capabilities |
Can continuously power an 18W system load under normal sunlight conditions. |
|
Charge Time (H) |
4 hours under full sunshine |
DESCRIPTION:

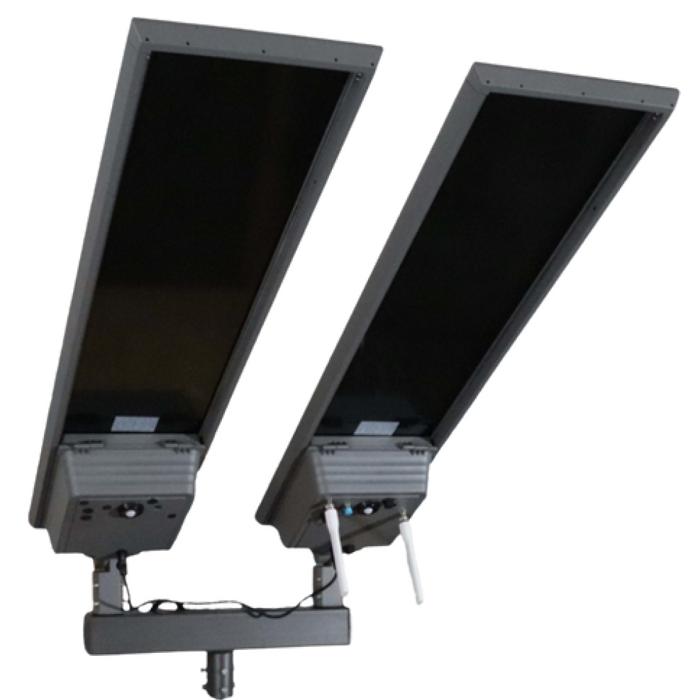

- The EP-SOL-POE-0136 Solar POE System is a dependable, solar-based, modular, off-grid power solution to POE devices in a variety of settings, from remote roads, parking lots, and greenways to campuses and construction sites. Encased in a robust, die-cast powder-coated aluminum housing with a heavy-duty mount, this system is built to withstand harsh environments, boasting weatherproof ratings of IP66 and IK08 (with the solar panel rated IK07), ensuring resilience against dust, water, and impacts.
