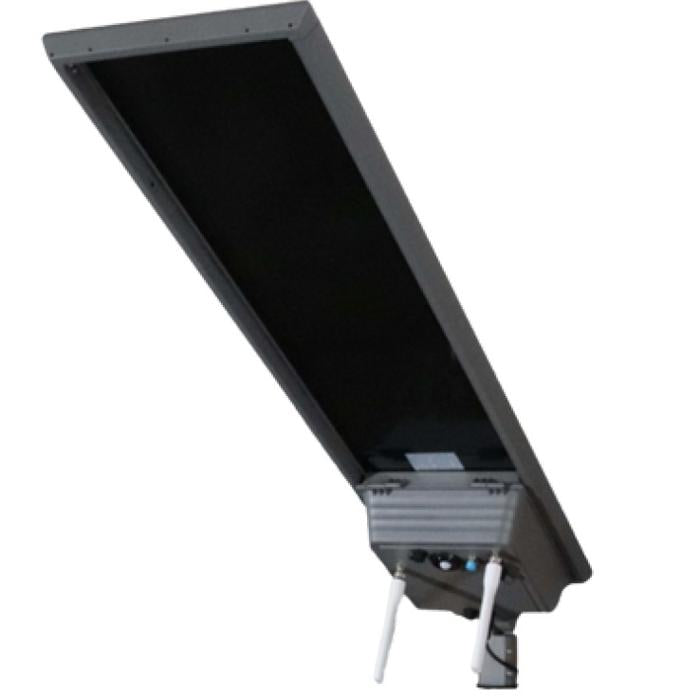

Solar Station Hybrid - 120W Solar Panel, 18W system load, 120-277VAC
Solar Station Hybrid - 120W Solar Panel, 18W system load, 120-277VAC
DOWNLOAD FILES
SPEC
SPECIFICATIONS
|
Mono-crystalline Solar Panel & Weight |
(1)120W/36V/29 lbs |
|
Batteries & Weight |
LiFePO₄ Batteries 25.6V/36AH/18 lbs |
|
POE Switch |
3 Ports IEEE802.3af/at @PoE+ |
|
Housing Materials |
Powder Coated Die-cast Aluminum Housing and Extruded Aluminum Frame |
|
Warranty |
2 year |
|
Finishing |
Dark Grey Pantone 8403C |
|
IP/IK |
IP 66/IK 08 (Except Solar Panel IK07 |
|
Spigot Diameter (in.) |
2 3/8 in Pole-top Tennon |
|
System Voltage |
24V |
|
External Power Input Voltage |
110-277V AC |
|
System Power Capabilities |
Can continuously power an 18W system load under normal sunlight conditions. |
|
Charge Time (H) |
6 hours under full sunshine |
DESCRIPTION:
- The EP-SOL-POE-0136-Hybrid is a versatile, all-weather PoE power station that combines the full capabilities of the EP-SOL-POE-0136 with a built-in line-voltage charging unit for true hybrid operation. This dual-source design enables the system to draw renewable power from its high-efficiency monocrystalline solar panels during the day and seamlessly switch to AC line charging at night—ideal for installations on lighting poles or infrastructure with limited or timed electrical access. At its core is a 36Ah LiFePO₄ battery, renowned for safety, reliability, and over 2,000 lifecycles, ensuring years of dependable performance. The system supports two PoE outputs, configurable for dual 48V PoE+ or mixed 48V PoE+ / 24V PoE, with an optional CradlePoint LTE Remote Router for secure, independent connectivity. Its smooth-surface panel design minimizes debris buildup and self-cleans during rain, maintaining maximum energy efficiency. Designed for easy deployment, it mounts directly to a 2 3/8-inch pole top or works with our pole kit and standard spigot brackets for flexible installation.
